11 22 500 Removing and installing/replacing flywheel (N20, N26)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks:
- Remove transmission.
Automatic transmission:

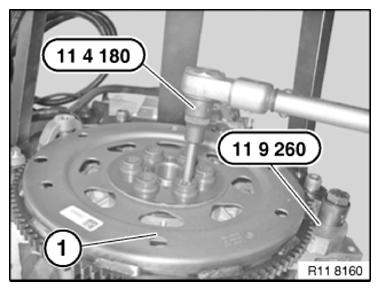

Secure flywheel (1) with special tool 11 9 260 .
Unfasten flywheel studs.
Tightening torque: 11 22 1AZ .
Installation note:
Flywheel (1) is secured with an dowel pin.
Clean all threads for flywheel bolts in crankshaft.
Fit new flywheel bolts.
