11 00 Mounting the engine on the assembly stand (N20/N26)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 2 300
- 11 8 541
- 11 8 542
- 83 30 0 495 187
- 83 30 2 212 832
IMPORTANT:
Jointing torque and angle of rotation must be observed without fail (risk of damage).
Necessary preliminary tasks:
- Remove engine

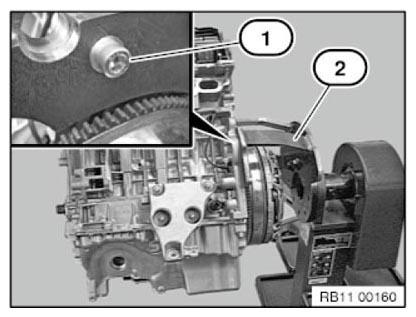

Attach engine or engine block to the fixture (2) using bolts (1).
Use special tool (2) to attach the engine to special tool 00 2 300 .
Order number, assembly
block: 83 30 0 495 187
Order number, fixture: 83 30 2 212 832
