11 15 005 Removing tank ventilation line (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXHAUST TURBOCHARGER .

Release screw (1).

Tightening torque: 11 42 6AZ

Remove oil return line (2).

Installation note:

Replace O-ring.

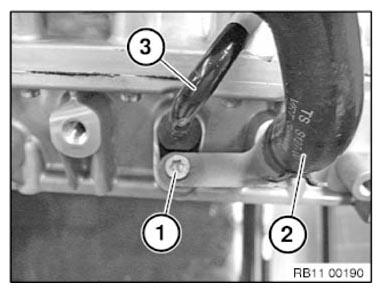

Fig 1: Oil Return Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vent line (3).

Release retaining clip (3).

Remove vent line (2).

Installation note:

Make sure vent line (2) is in correct installation position.

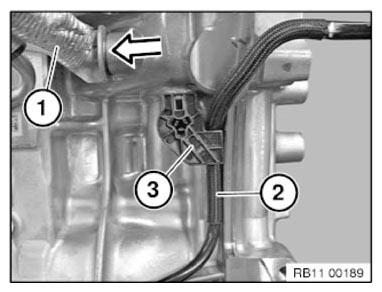

Fig 2: Removing Vent Line And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
