11 31... Determining intake camshaft variant (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove VACUUM PUMP

NOTE: Variant A: X = approx. 8 mm
Variant B: Y = approx. 4 mm

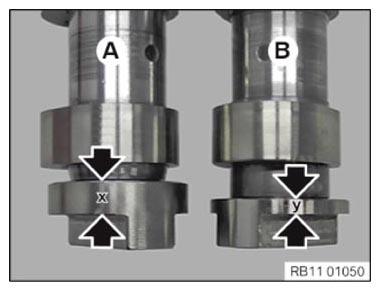

Fig 1: Intake Camshaft Variant

Courtesy of BMW OF NORTH AMERICA, INC.

Identify intake camshaft variant by means of mirror (1) on vacuum pump drive flange.

IMPORTANT: If variant A is fitted, proceed with CHECKING INTAKE CAMSHAFT .
If variant B is fitted, no further action is required. Install VACUUM PUMP .

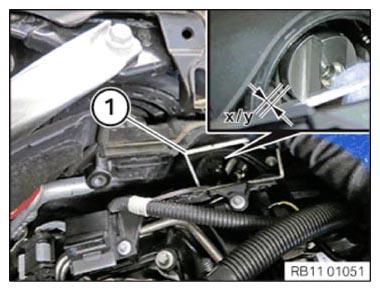

Fig 2: Identify Intake Camshaft Variant

Courtesy of BMW OF NORTH AMERICA, INC.
