11 31 005 Checking camshaft timing (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER

Crank engine with special tool 11 6 480 to TDC firing position of cylinder no. 1.

IMPORTANT: Do not turn the engine against the direction of travel.

Fig 1: Special Tool (11 6 480)

G05758605

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap of gear case cover.

Crank engine at central bolt with special tool 11 6 480

Use special tool 11 5 320 to block the crankshaft in the TDC firing position Cylinder 1

Fig 2: Special Tool (11 5 320)

G09918961

Courtesy of BMW OF NORTH AMERICA, INC.

The cam on the intake camshaft (E) points obliquely upwards at cylinder No. 1.

The cam on the exhaust camshaft (A) points obliquely outward to the left at cylinder No. 1.

Fig 3: Camshaft Points

G09919246

Courtesy of BMW OF NORTH AMERICA, INC.

The marking on exhaust sprocket wheel (A) must be aligned with the marking on intake sprocket wheel (E).

NOTE: See Fig 4.

Fig 4: Exhaust Sprocket Wheel Marking

G09919349

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 11 8 760 on exhaust camshaft.

NOTE: Special tool 11 8 760 must lie flush on cylinder head.

If necessary, adjust CAMSHAFT TIMING .

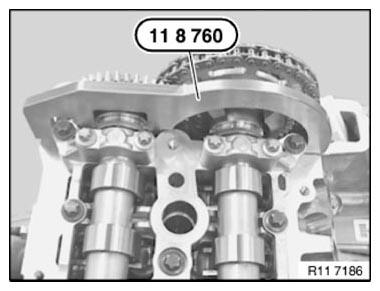

Fig 5: Placing Special Tool (11 8 760) On Exhaust Camshaft

G09919353

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

IMPORTANT: 11 5 320 Remove special tool before starting engine.
