41 11 311 Replacing Entrance For Door Front Left
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Follow procedures for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Use only approved SPOT-WELDING APPARATUS for repairs.
The following new body parts are required:
- (1) A-pillar with entrance
Mark severance cuts in accordance with specified dimensions and cut.
IMPORTANT:
Cut outer panel only for following severance cuts.

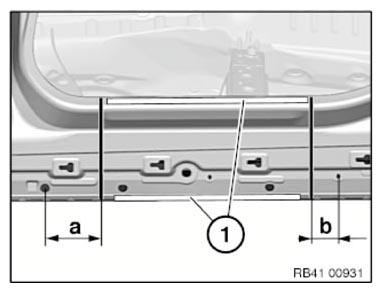

Dimension "a" = approx. 115 mm past centerpoint of 20 mm dia. hole.
Dimension "b" = approx. 55 mm before centerpoint of 7, 5 x 11 mm dia. hole.
Open welded connections in areas (1).
Installation note:
Mark new part in accordance with severance cuts on vehicle and cut.
Weld in REINFORCEMENT PLATES at severance cuts.
