41 62 515 Removing/Installing/Replacing Left Hinge For Tailgate (Tailgate Removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Necessary preliminary tasks:

Release rear HEADLINING in rear area

Unscrew nuts (1).

Tightening torque 41 62 2AZ .

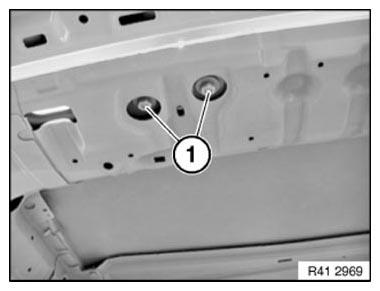

Fig 1: Identifying Nuts

G10167130

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove hinge.

Tightening torque 41 62 7AZ .

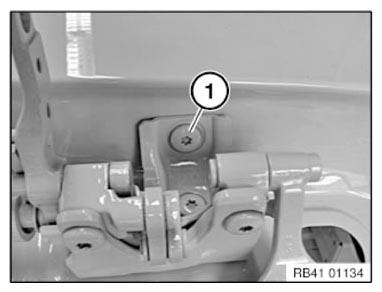

Fig 2: Identifying Hinge Screw

G10167131

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before final assembly, apply sealing compound in areas (1).

ADJUST hinge together with tailgate.

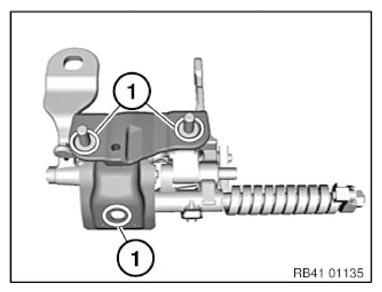

Fig 3: Identifying Sealing Compound Application Areas

G10167132

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove ground straps.

Pull off stop pad (2).

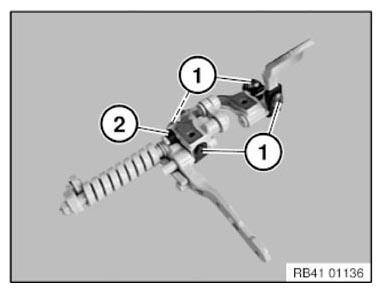

Fig 4: Identifying Stop Pad And Screws

G10167133

Courtesy of BMW OF NORTH AMERICA, INC.
