41 12 701 Replacing Luggage Compartment Floor And Right Side Member (Right Side Panel And Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

STRIP DOWN VEHICLE .

Place vehicle on straightening bench.

Follow procedures for REPAIR STAGE 3 .

The following new parts are required:

(1) Luggage compartment well
(2) Luggage compartment floor, rear
(3) Luggage compartment well, right
(4) Bottom right side member
(5) Frame side member, top right

Fig 1: Identifying Luggage Compartment Well, Floor And Side Members
Courtesy of BMW OF NORTH AMERICA, INC.
(6) Luggage compartment floor, right

The following consumables are required:

Material	Quantity
Adhesive K5a	2
Blind rivet N3	11
Blind rivet N6	8
EMC screw	4
Cleaning agent R1	1
Sealant D1

Removal:

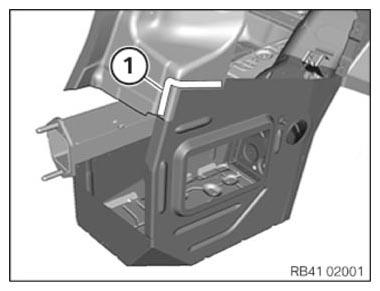

Open welded connections in area (1).

Fig 2: Locating Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 3: Locating Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

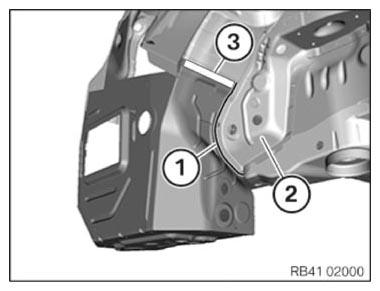

Mark severance cut (1) next to reinforcement (2) and disconnect.

Open welded connections in area (3).

Fig 4: Identifying Cutting Line And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 5: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

NOTE: Schematic diagram without D-pillar inner panel for better overview.
Remove the luggage compartment floor.

Fig 6: Locating Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Mark and cut severance cut (1) through Ø 20 mm hole.

Cut side member.

Mark severance cut (2) through elongated hole for MAG weld seam and cut.

IMPORTANT: Cut outer panel only.
Open welded connections in areas (3).
Remove side member.

Fig 7: Identifying Cutting Lines And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts on side member in accordance with severance cuts on vehicle and cut.

Mark severance cut on luggage compartment floor in accordance with severance cut on vehicle + 15 mm for extra material and cut.

Prepare for severance cuts on the side member REINFORCEMENT PLATES .

Adjust new parts with alignment bracket or universal mount and in conjunction with side wall and tail panel and secure.

Fig 8: Identifying Areas For Setting Blind Rivet Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (3), set bore holes Ø 4.2 mm for blind rivet.

Area	Number
1	5
2	6
3	4 of

Remove new parts and deburr bore holes.

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Installation of side member and luggage compartment well:

Install new parts and reinforcement plates with alignment bracket or universal mount and weld analogue to series standard:

Extension, bottom side member
Extension, top side member
Luggage compartment well, left
Luggage compartment well

Fig 9: Identifying Side Member Extensions And Luggage Compartment Wells
Courtesy of BMW OF NORTH AMERICA, INC.

Installation of right luggage compartment floor:

Install new part and weld in area (1).

NOTE: Schematic diagram without D-pillar inner panel for better overview.

Fig 10: Identifying Area For Welding New Part

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in area (1).

Fig 11: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of rear luggage compartment floor:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

When installing the new part, make sure that all bonding surfaces have sufficient adhesive.

Fig 12: Identifying Areas For Setting Blind Rivet Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Install new part and rivet with blind rivet.

Area	Number	Remarks
1	5	Blind rivet N3
2	6	Blind rivet N3
3	4 of	Blind rivet N6

After hardening of the adhesive install 4 EMC SCREWS in the areas shown (1).

Fig 13: Identifying Areas For Installing EMC Screws
