008500 Extractor Mechanical tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Universal extractor Kukko 204-2) For pulling the camshaft sprocket off the crankshaft (M70) and pulling in the compensating wheel axle in the rear axle final drive (all engines)

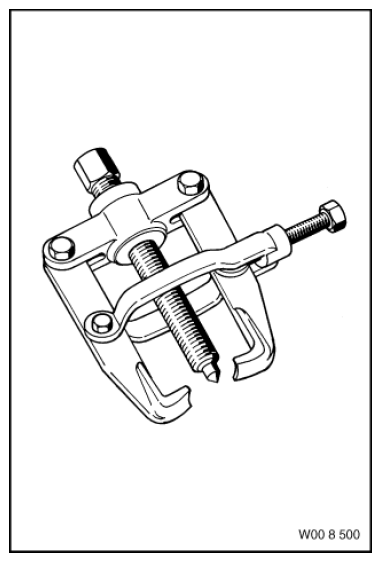

Fig 1: Identifying Extractor (008500)

Courtesy of BMW OF NORTH AMERICA, INC.
