001490 Assembly stand AM

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300495187

NOTE: For accommodating engine, transmission and rear axle, replaced by 00 1 450 (passenger car) Release for motorcycle only! Replaced by 00 2 300 (0 495 187)

Consisting of:

1 = 0490119 Frame

NOTE: (tube frame) Release for motorcycle only!

2 = 0490120 Fixture

NOTE: (mount head without mount flange)

3 = 0490121 Fixture

NOTE: (mount flange (2 pieces required)) Release for motorcycle only!

4 = 0490122 Fuse

5 = 0490123 Fitting aid

NOTE: (stop of mount flange)

6 = 0490124 Lever

NOTE: (release lever)

7 = 0490125 Wheel

NOTE: (wheel without brake) Release for motorcycle only!

8 = 0490126 Wheel

NOTE: (wheel with brake) Release for motorcycle only!

9 = 0490127 oddments tray

NOTE: (storage plate)

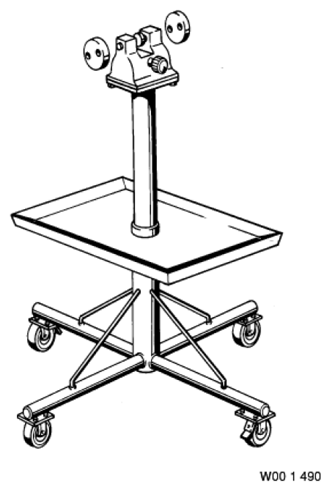

Fig 1: Identifying Assembly Stand (001490)

Courtesy of BMW OF NORTH AMERICA, INC.
