SI number

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 05 07 (353)

Consisting of:

1 = 0496173 Plate

NOTE: (Cover plate 1) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).

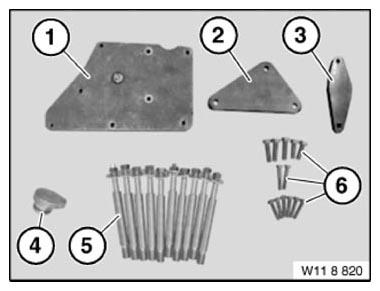

Fig 1: Device (118820)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0496174 Plate

NOTE: (Cover plate 2) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).

3 = 0496175 Plate

NOTE: (Cover plate 3) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).

4 = 0496176 Plug

NOTE: Only available as part of complete tool set 11 8 820 (= 83 30 0 496 138).

5 = 0496177 Bolt

NOTE: (Stud bolt) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).

6 = 0496178 Screw

NOTE: (Set of screws) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).

7 = 0496179 Gasket

NOTE: (Gasket for cover plate 1) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).

8 = 0496180 Gasket

NOTE: (Gasket for cover plate 2) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).

9 = 0496181 Gasket

NOTE: (Gasket for cover plate 3) Only available as part of complete tool set 11 8 820 (=83 30 0 496 138).
