Storage Location

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Consisting of:

1 = 0490813 Claw

NOTE: (Extraction claw I) With threaded bush

2 = 0490814 Claw

NOTE: (Extraction claw II)

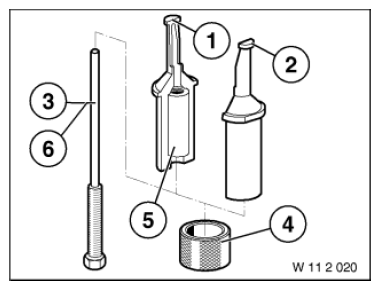

Fig 1: Puller (112020)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0490815 Spindle

NOTE: (Pressure spindle)

4 = 0490816 Holding sleeve

5 = 0490817 Bush

NOTE: (Threaded bush)
