32 33 010 Removing and installing/replacing sport steering wheel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks:

Remove AIRBAG UNIT

Move wheels/sports steering wheel into straight-ahead position.

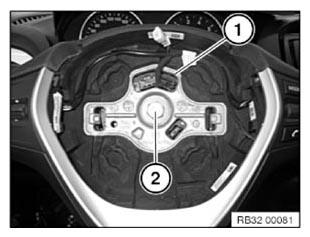

Disconnect plug connection (1).

Release screw (2) and remove sport steering wheel.

Installation note:

Make sure connecting line(s) is/are correctly laid.

Tightening torque 32 33 1AZ .

Fig 1: Identifying Steering Wheel Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

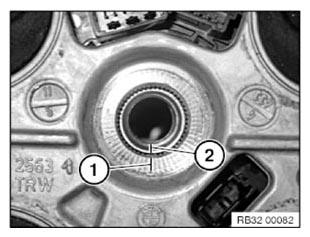

Align sports steering wheel by way of marking (1) to steering column marking (2) and attach.

Fig 2: Identifying Steering Column Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Reinstall BOTH SHIFT PADDLES
Modify DESIGN COVER
Modify both SWITCHES ON SPORT STEERING WHEEL
If necessary, modify STEERING WHEEL MODULE
