33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

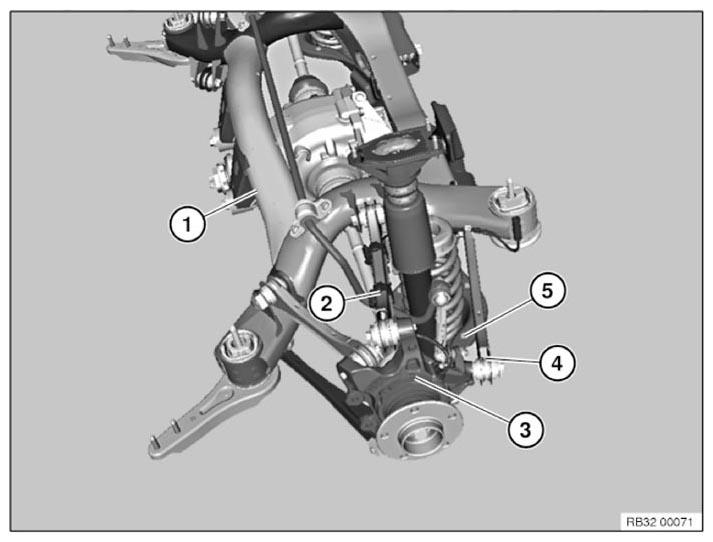

A WHEEL ALIGNMENT CHECK must be carried out after the following work:
- Release the following screw connection:
- Wishbone to rear axle support (2)
- Toe arm on rear axle support (4)
- Toe arm to wheel carrier (4)
- Camber arm on rear axle support (5)
- Camber arm to wheel carrier (5)
- Replacement of following parts:
- Rear axle support (1)
- Wishbone (2)
- Wheel carrier (3)
- Toe arm (4)
- Toe arm (5)
- Ball joint in wheel carrier
- Rubber mount in wheel carrier
