32 00... General chassis and suspension definitions

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

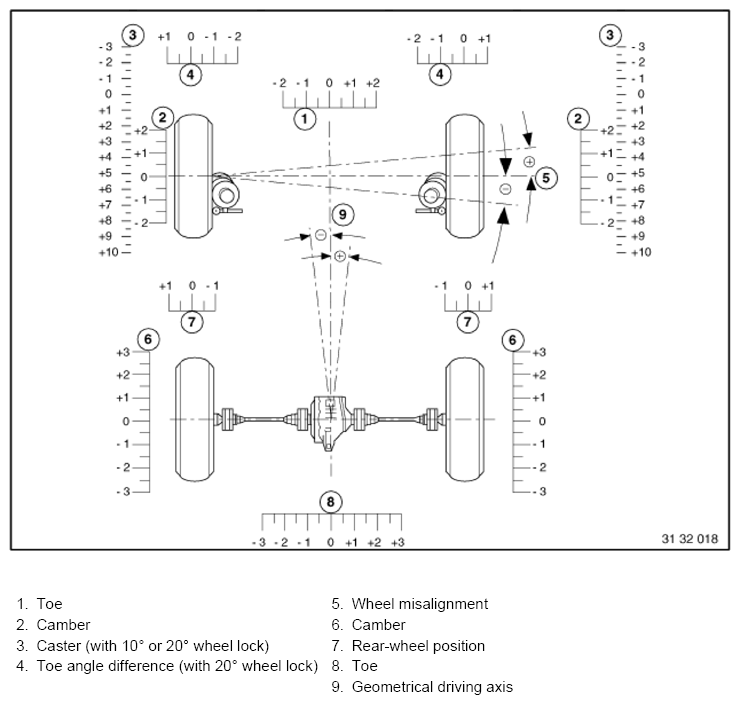

Fig 1: Identifying Wheel Alignment Dimensions
G10169037Courtesy of BMW OF NORTH AMERICA, INC.
