32 00 601 Adjusting toe-in on front axle
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!
NOTE:
Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.
The camber adjustment is performed only with the replacement of the swivel bearing. There are various swivel bearings (+/-30') for this purpose.
-> See also Additional work for camber correction See 3200... ADDITIONAL WORK FOR CAMBER CORRECTION or 3200... ADDITIONAL WORK FOR CAMBER CORRECTION and BMW Spare Parts Catalog!
The camber adjustment is performed only with the replacement of the swivel bearing. There are various swivel bearings (+/-30') for this purpose.
-> See also Additional work for camber correction See 3200... ADDITIONAL WORK FOR CAMBER CORRECTION or 3200... ADDITIONAL WORK FOR CAMBER CORRECTION and BMW Spare Parts Catalog!

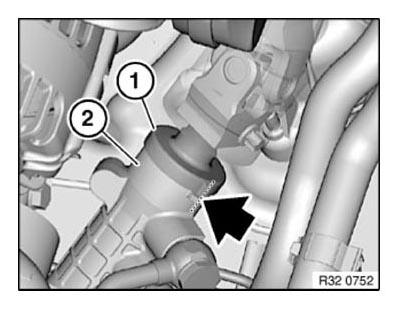

Firstly align steering by means of markings on cap (1) and steering gear (2).
Then bring steering wheel into straight-ahead position and secure with steering wheel arrester.
Adjust toe-in:
Clean thread on track rod.

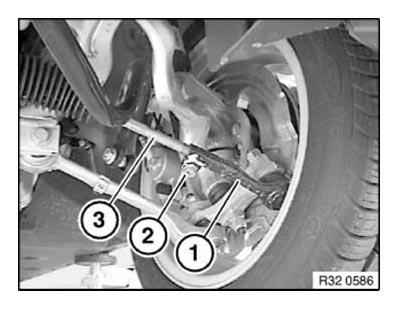

Loosen screw (2).
Turn tie rod (3) to adjust toe-in to setpoint value, if necessary counterhold track rod end (1).
Tighten screw (2).
Tightening torque 32 21 2AZ .
If necessary, correct installation position of gaiter.
After Installation note:
- Check directional stability of car; if necessary, repeat toe-in adjustment
