31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
A WHEEL ALIGNMENT CHECK must be carried out after the following work:
Release the following screw connections:
- Steering box to front axle support
- Lower wishbone to front axle support
- Track rod end to track rod

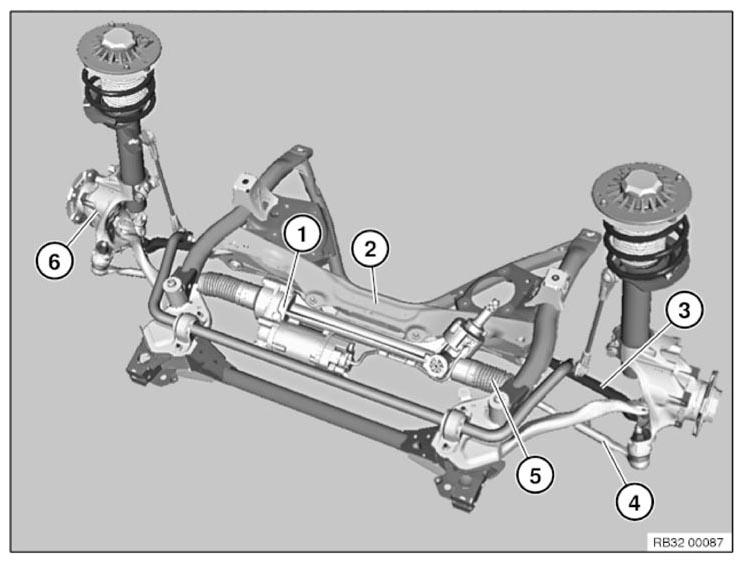

Release the following components:
- Steering box (1)
- Front axle support (2)
- Wishbone, bottom (3)
- Track rod end (4)
- Track rod (5)
- Swivel bearing (6)
