54 12 498 Removing and installing/renewing gasket for water gutter

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove gasket (1).

Installation note:

Make sure gasket (1) is correctly mounted.

Centre gasket (1) on left and right and press down.

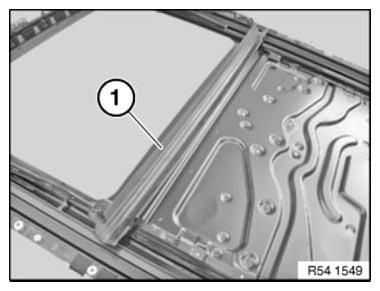

Fig 1: Identifying Centre Gasket
G06886040Courtesy of BMW OF NORTH AMERICA, INC.
