54 12 497 Removing and installing/replacing wind deflector for glass slide/tilt sunroof

Necessary preliminary tasks:

• Completely open glass slide/tilt sunroof lid
• Completely open sliding headlining

Press net welt (1) with screwdriver towards rear and pull out of guide.

Replacement only:

Cut off net from wind deflector to facilitate removal of net welt.

Installation:

Slide net welt (1) with pointed pliers first on left and right into outermost guide.

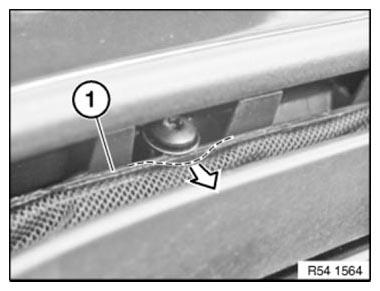

Fig 1: Pressing Net Welt Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Press controller (1) for wind deflector forwards against spring.

Press wind deflector inwards and disengage from controller.

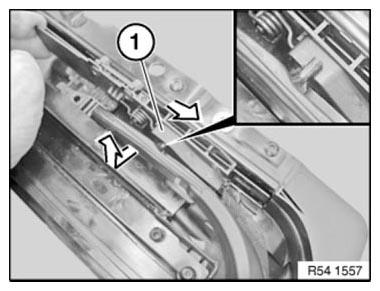

Fig 2: Disconnecting Wind Deflector From Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wind deflector guide is correctly positioned between spring and controller.

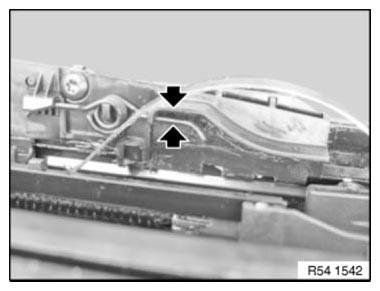

Fig 3: Checking Wind Deflector Guide Position Between Spring And Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Reposition wind deflector and remove towards top.

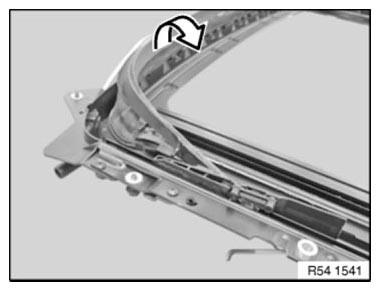

Fig 4: Removing Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.
