62 30 005 Removing and installing/replacing trim for Head-Up Display

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out trim for Head-Up Display (1) with special tool 00 9 317 at mounting points (2).

Feed cover for head-up display (1) in direction of arrow out of instrument panel trim (3) and remove.

Fig 1: Removing Head-Up Display Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining lugs (1) and (2) and sleeve (3) of cover for Head-Up Display (4) are correctly seated.

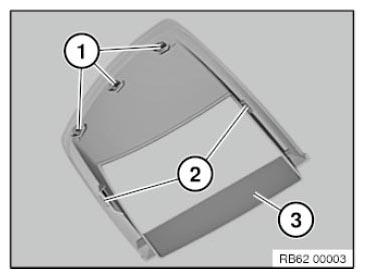

Fig 2: Identifying Head-Up Display, Retaining Lugs And Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only on F06, F12, F13:

Installation note:

Make sure retaining lugs (1) and (2) are correctly seated on cover for Head-Up Display (3).

Fig 3: Identifying Head-Up Display And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
