84 21 535 Removing and installing (replacing) hands-free charging electronics (optional extra SA644)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Remove LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM
Partially remove wheel arch panel left at F10

Unlock plug connections (1) and disconnect.

Unscrew nuts (2).

Remove hands-free charging electronics (3).

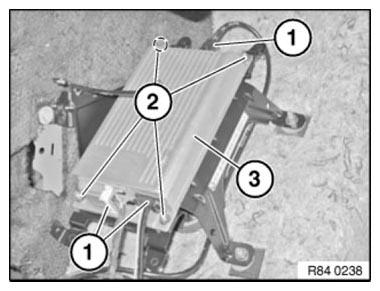

Fig 1: Identifying Hands-Free Charging Electronics, Plug Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING
If necessary, log mobile phone on to vehicle
