84 10 720 Removing and installing/replacing base plate (in center armrest at rear)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Fold down center armrest
Open upper armrest section

Slide in special tool 00 9 341 as pictured and release catch.

Remove base plate (1) in direction of arrow.

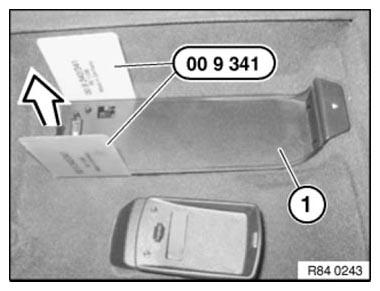

Fig 1: Removing Base Plate Using Special Tool (00 9 341)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect, remove base plate.

Installation:

Catches (2) must not be damaged.

Ensure correct routing of cables.

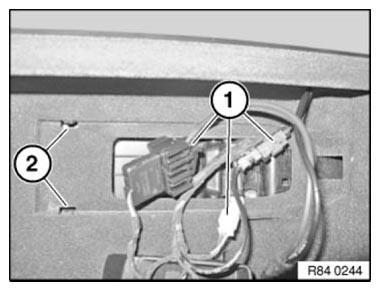

Fig 2: Identifying Plug Connections And Catches
