65 50 147 Replacing hinges for rear monitor
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Remove REAR CABIN MONITOR
IMPORTANT:
Do not damage or scratch display.

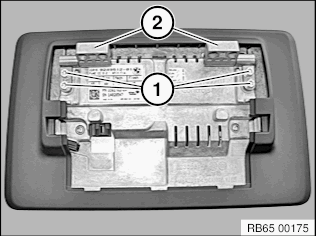

Release screws (1).
Tightening torque 65 50 4AZ
Remove hinges (2).
