65 13 188 Removing and installing/replacing rear mid-range speaker (in storage shelf)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out speaker cover (1) with special tool 00 9 325 .

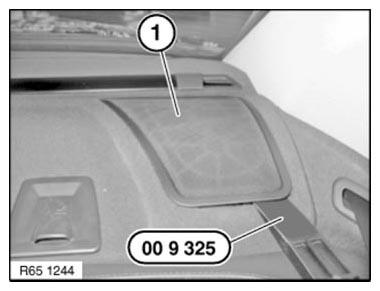

Fig 1: Removing Speaker Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs on speaker cover (1) must not be damaged.

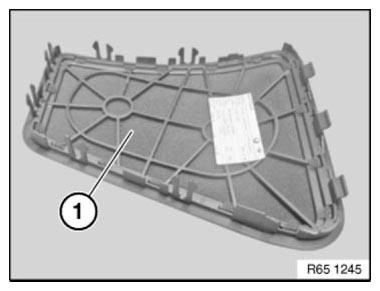

Fig 2: Identifying Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove mid-range speaker (2) in direction of arrow from speaker (3).

Disconnect plug connection underneath.

Remove mid-range speaker (2).

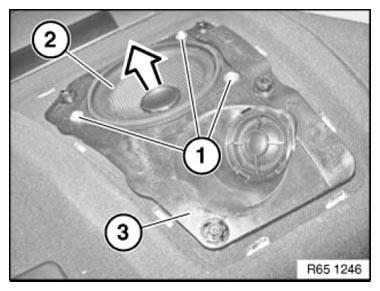

Fig 3: Removing Mid-Range Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
