65 13 065 Removing and installing/replacing front speaker carrier (instrument panel)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim (1) from latching mechanisms with special tool 00 9 325 .

Fig 1: Removing Trim From Latch Mechanisms Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove speaker carrier (2) and disconnect associated plug connection.

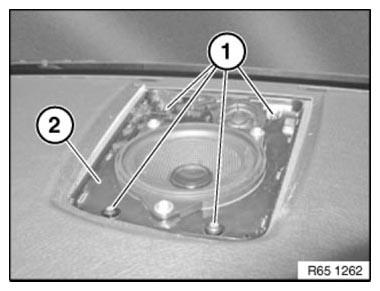

Fig 2: Identifying Speaker Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Marked retaining lugs must not be damaged.

Fig 3: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Disconnect plug connection (1).
Remove MID-RANGE SPEAKER (2)
Remove TWEETER (3)

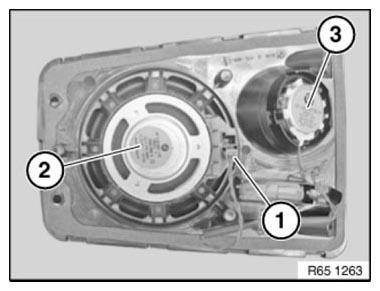

Fig 4: Identifying Plug Connection, Mid-Range Speaker And Tweeter
Courtesy of BMW OF NORTH AMERICA, INC.
