65 13 057 Removing and installing/replacing speaker system (High End sound system, in dashboard trim panel)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER ON SPEAKER SYSTEM

NOTE: Picture for example purposes, F12 shown.

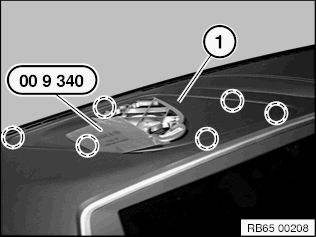

Use special tool 00 9 340 to unclip cover (1) at marked points.

Fig 1: Identifying Special Tool 00 9 340 And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Clamps on cover (1) must not be damaged.

Replace clamps if necessary.

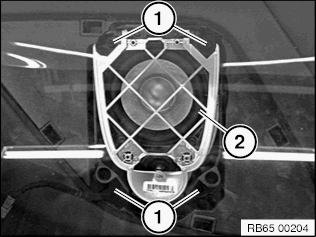

Fig 2: Locating Clamps On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Remove cover (1).

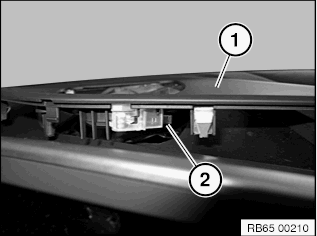

Fig 3: Identifying Connector And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove speaker system (2) from dashboard.

Fig 4: Identifying Speaker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Remove speaker system (2).

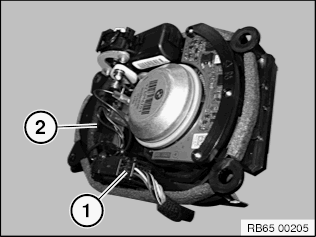

Fig 5: Identifying Speaker And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Speaker system (1) must be adjusted.

Observe the following notes for this:

Insertion of speaker system (1) in dashboard
Placement of cover (2), this pre-centers of speaker system
Removal of cover (2) and screw connection from the two front screw points
Renewed placement of cover (2) and if necessary subsequent centering of speaker system
Removal of cover (2) and screw connection from the two rear screw points
Renewed placement of cover (2)
If joint speaker system (1) not OK, then manual fine tuning of joint

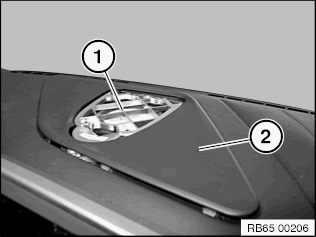

Fig 6: Identifying Speaker And Cover
