65 13 050 Removing and installing/replacing speaker (tweeter, triangular mirror section, left or right)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

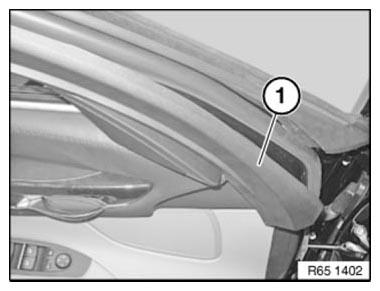

Unclip window frame cover (1) in front area as shown.

Fig 1: Identifying Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

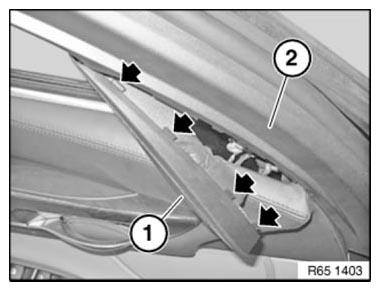

Unclip mirror triangle cover (1) as shown from side window frame cover (2).

Installation:

Marked retaining lugs must be correctly engaged in guides on side window frame (2)

Ensure mirror triangle cover (1) is correctly seated.

Fig 2: Locating Mirror Triangle Cover

Courtesy of BMW OF NORTH AMERICA, INC.

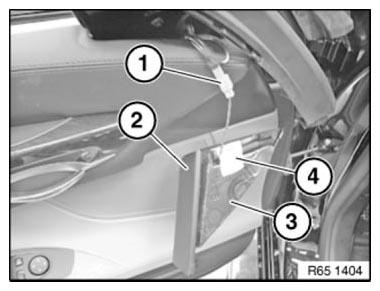

Disconnect plug connection (1).

Remove sound insulation (3) from speaker cover (2).

Installation:

Renew fastening (4) if necessary.

Fig 3: Identifying Plug Connection, Sound Insulation, Speaker Cover And Fastening

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip tweeter (1) at retaining lugs (2) and remove from mirror triangle cover (3).

Installation:

Retaining lugs (2) must not be damaged.

Fig 4: Identifying Tweeter, Mirror Triangle Cover And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
