65 76 605 Removing and installing/replacing middle pedestrian protection sensor

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INSTRUCTIONS for handling gas generators.
Incorrect handling can activate pedestrian protection and cause injury.

Necessary preliminary tasks:

Disconnect BATTERY CABLE
Remove BASEPLATE FOR NUMBER PLATE
Remove ORNAMENTAL GRILLE IN BUMPER TRIM .

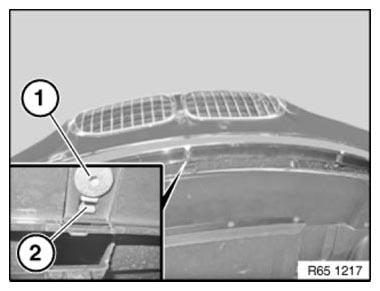

Release screws (1).

Tightening torque 65 76 1AZ .

Feed out sensor (2).

Fig 1: Identifying Sensor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove sensor (2).

Fig 2: Identifying Plug Connection And Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
