63 13 250 Removing and installing/replacing front left or right side repeater mirror (from 07/2012)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXTERIOR MIRROR ON FRONT DOOR
Remove retaining ring on exterior mirror

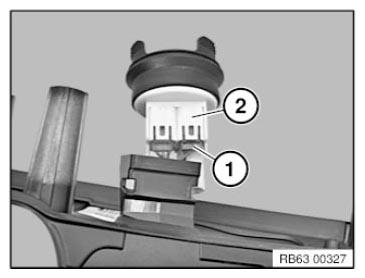

Release plug connection (1) on central connector (2) and disconnect.

Fig 1: Identifying Plug Connection And Central Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out cable (1).

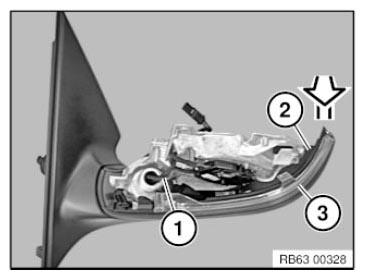

Feed side repeater (3) in direction of arrow out of mirror housing (2).

Fig 2: Identifying Cable, Repeater And Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.
