63 13 220 Removing and installing/replacing front left or right auxiliary turn indicator trim

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Slide front auxiliary turn indicator trim (1) with special tool 11 4 471 in upward direction and fold out in direction of arrow.

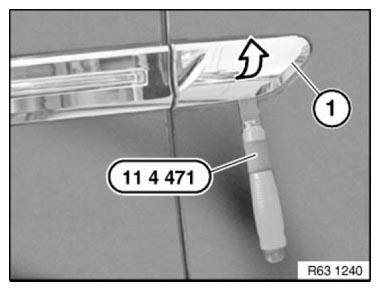

Fig 1: Sliding Front Auxiliary Turn Indicator Trim Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) and catch (2) are correctly installed.

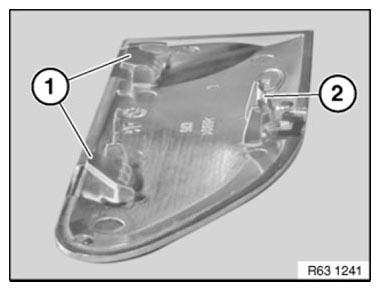

Fig 2: Identifying Guides And Catch

Courtesy of BMW OF NORTH AMERICA, INC.
