63 13 080 Removing and installing/replacing left turn indicator insert

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT HEADLIGHT

Release screws (1) on headlight.

Tightening torque 63 12 6AZ .

Remove turn indicator insert (2) from headlight (3) towards top.

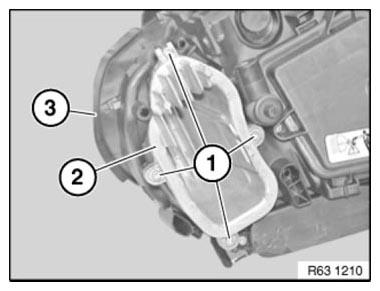

Fig 1: Identifying Turn Indicator Insert, Headlight And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on turn indicator insert (2).

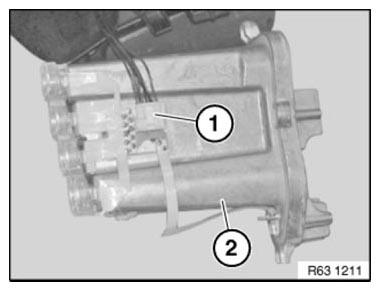

Fig 2: Identifying Plug Connection And Turn Indicator Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in turn indicator insert (2) via vehicle diagnosis.

Service functions
Body
Lights
Learning turn signal indicator
