63 13 080 Removing and installing/replacing left turn indicator insert (LED headlight)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE HEADLIGHT

Release screws (1) on headlight.

Tightening torque 63 12 6AZ .

Pull turn indicator insert (2) out of headlight.

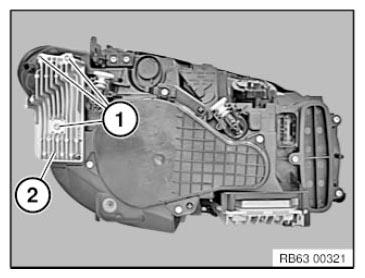

Fig 1: Identifying Turn Indicator Insert And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on turn indicator insert (2).

Installation note:

Seal (3) and guides (4) on turn indicator insert (2) must not be damaged or missing.

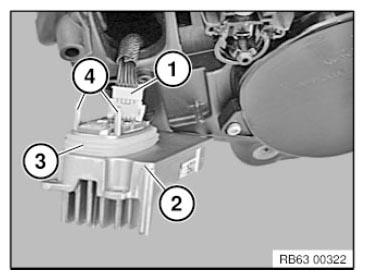

Fig 2: Identifying Plug Connection, Turn Indicator Insert, Seal And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in turn indicator insert (2) via vehicle diagnosis.

Service functions
Body
Lights
'Teaching in turn signal indicator'
