63 21 180 Removing and installing/replacing left or right rear light (in side panel)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH TRIM ON LEFT .

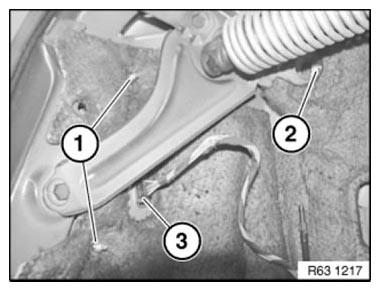

Release nuts (1) and nut (2).

Tightening torque, 63 21 1AZ .

Disconnect plug connection (3).

Fig 1: Identifying Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

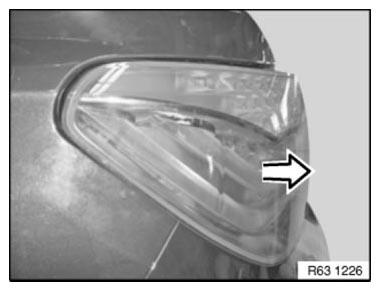

Remove left rear light (1) in direction of arrow.

Fig 2: Removing Left Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure sealing frame (1) for rear light (2) is correctly seated.

If necessary, replace SEALING FRAME (1).

Fig 3: Identifying Rear Light And Sealing Frame

Courtesy of BMW OF NORTH AMERICA, INC.
