63 99 312 Replacing bulb(s) for left or right rear light (rear lid)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove PANEL FOR TAILGATE

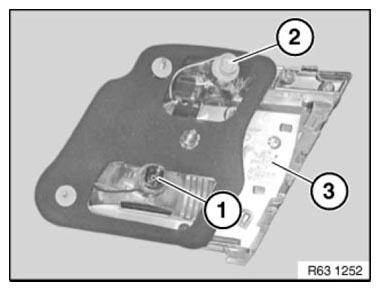

NOTE: Rear light (3) shown removed for purposes of clarity.

Pull bulb holder (1) or bulb holder (2) out of rear light (3) and change corresponding bulb.

NOTE:

Bulb for rear fog light
Bulb for reversing light

Installation:

Note BULB TYPE .

Fig 1: Identifying Make-Up Mirror With Holder And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
