63 99 160 Replacing bulb for front left turning lights

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove cover (1) from left engine compartment lid seal mounting.

Fig 1: Identifying Left Engine Compartment Lid Seal Mounting Cover

Courtesy of BMW OF NORTH AMERICA, INC.

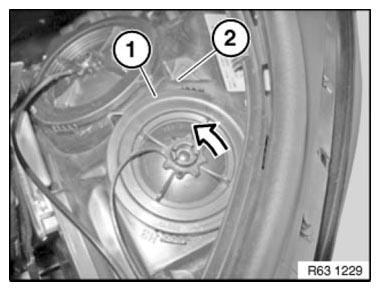

Turn protective cap (1) on headlights (2) in direction of arrow and remove.

Installation note:

Protective cap (1) must be correctly engaged.

Check seal.

Replace protective cap (1) if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

Fig 2: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and unlock clamp (2).

Remove bulb (3) in direction of arrow.

Replacement:

Note BULB TYPE .

Fig 3: Removing Handling Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove cover (1) from left engine compartment lid seal mounting.

Fig 1: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Turn protective cap (1) on headlights (2) in direction of arrow and remove.

Installation note:

Protective cap (1) must be correctly engaged.

Check seal.

Replace protective cap (1) if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

Fig 2: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and unlock clamp (2).

Remove bulb (3) in direction of arrow.

Replacement:

Note BULB TYPE .

Fig 3: Removing Handling Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
