63 99 145 Replacing bulb for front left side lights (xenon headlight)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Turn cover (1) in direction of arrow and remove.

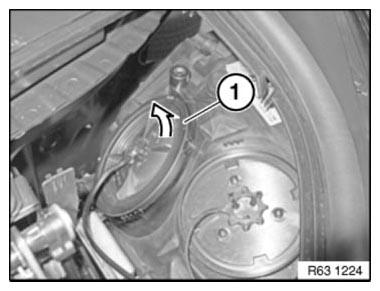

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from bulb (2).

Turn bulb (2) in direction of arrow and remove from headlights (3).

Installation note:

Socket with bulb for side lights (2) must be correctly seated in mount.

Note BULB TYPE .

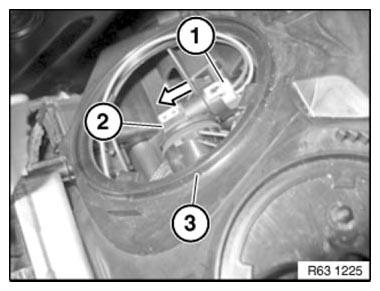

Fig 2: Removing Handling Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
