63 10... Adjusting dynamic light spot headlight (with non-electronic headlight adjustment device)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Comply with TEST PREREQUISITES for headlight adjustment.

Refer to the manufacturer's operating instructions for the headlight adjustment device!

NOTE: Dynamic Light Spot headlight must be adjusted in the following cases:

After removing and installing/replacing the Dynamic Light Spot headlight
After removing and installing/replacing the front bumper panel
In the event of customer complaints about the lighting performance

Switch the ignition on.

Perform test procedure via path:

Body
Lights
Targeted headlight illumination

Adjust headlight setting dimension on headlight adjustment device: 0 %

NOTE:

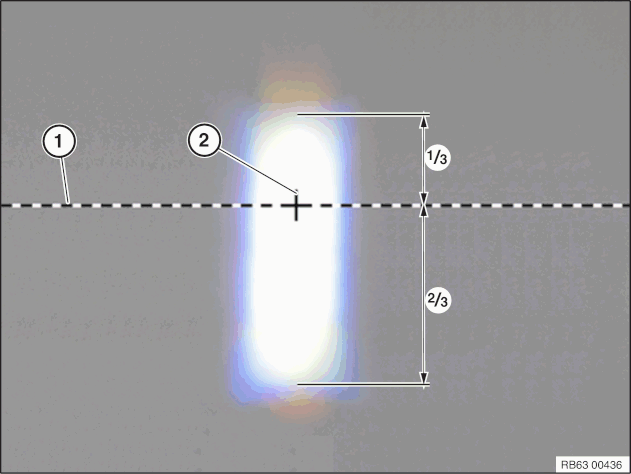

The graphic schematically shows the light pattern of the dynamic spot headlight on the projection surface in the inspection glass of a headlight adjustment device.

The proportions shown in the graphic are examples and may differ from a real pattern.

(1): horizontal line = dividing line for reference axis of light/dark boundary for the low-beam headlight

(2): vertical line = break point of light/dark boundary for the asymmetric low-beam headlight

Light pattern of dynamic spot headlight must be positioned as follows:

1/3 must lie above and 2/3 below the horizontal line (1).
Vertical line (2) must be in the middle.

Fig 1: Adjusting Dynamic Light Spot Headlight (With Non-Electronic Headlight Adjustment Device)

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, adjust Dynamic Light Spot headlight (3) with screws (1, 2).

NOTE:

Upper screw (1) is for height adjustment.

Lower screw (2) is for lateral adjustment.

Fig 2: Identifying Dynamic Light Spot Headlight And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
