63 31 193 Replacing LED for rear inside door opener (left or right)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove door trim panel. See FRONT DOOR TRIM PANEL or REAR DOOR TRIM PANEL .

Pull out LED for rear inside door opener (1) in direction of arrow.

Slide lighting cable (2) upwards in direction of arrow from holder (3).

Detach LED for rear inside door opener (1) from light cable (2).

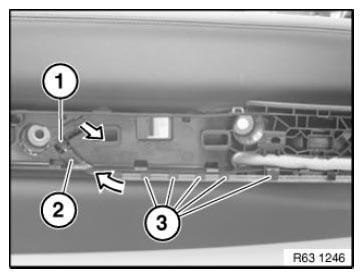

Fig 1: Sliding Lighting Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure LED for rear inside door opener (1) is correctly seated.

Make sure light cable (2) is correctly seated in holder (3).
