63 31 085 Removing and installing/replacing luggage compartment light (on rear lid)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Lever out luggage compartment light (1) at recesses (2) in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment light (1).

Fig 1: Removing Luggage Compartment Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulbs.
Note BULB TYPE .

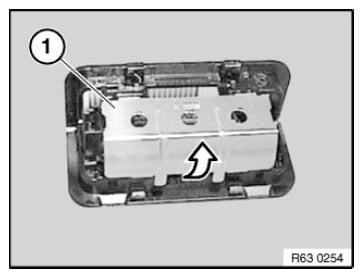

Remove cover (1) in direction of arrow.

Remove bulb underneath.

Fig 2: Removing Bulb Underneath Cover

Courtesy of BMW OF NORTH AMERICA, INC.
