63 31 080 Removing and installing/replacing luggage compartment light
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

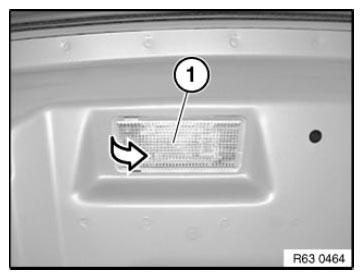

Lever out luggage compartment light (1) in direction of arrow.
Disconnect plug connection underneath and remove luggage compartment light (1).
Replacement:
- If necessary, remove bulb, observe BULB TYPE
Luggage compartment light in LED technology must be completely replaced!
