63 31 050 Removing and installing/replacing make-up mirror light

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Lever out make-up mirror light (1) at rear in direction of arrow.

Disconnect plug connection underneath and remove make-up mirror light (1).

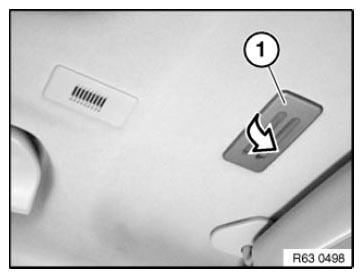

Fig 1: Removing Make-Up Mirror Light

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
Note BULB TYPE .
