63 11 845 Replacing left LED fan (middle)

Necessary preliminary tasks:

• Remove HEADLIGHT WITH LED TECHNOLOGY

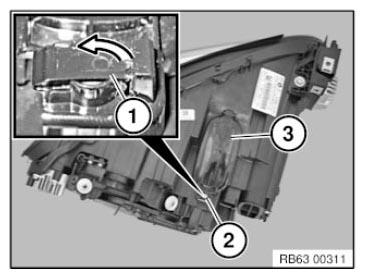

Open screw lock (1).

Release screw (2) and take out protective cap (3).

Tightening torque 63 11 6AZ.

Fig 1: Opening Screw Lock

Courtesy of BMW OF NORTH AMERICA, INC.

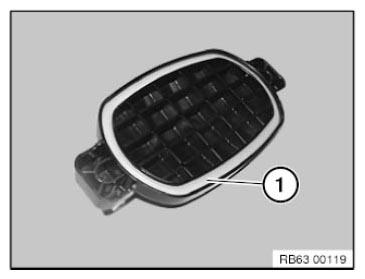

Installation note:

Gasket (1) must not be damaged and must be installed free from grease.

Fig 2: Identifying Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Open screw lock (1).

Release screws (2) and remove protective cap (3).

Tightening torque 63 11 6AZ.

Fig 3: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check seal (1). Replace protective cap (2) if necessary.

Fig 4: Identifying Seal And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

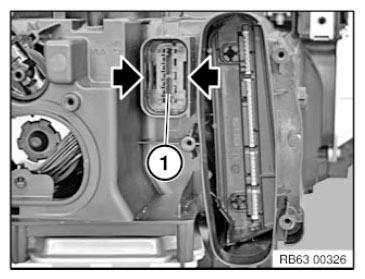

Press connector (1) together (arrow) and disengage inwards into the light housing.

Fig 5: Disengaging Connector Inwards Into Light Housing

Courtesy of BMW OF NORTH AMERICA, INC.

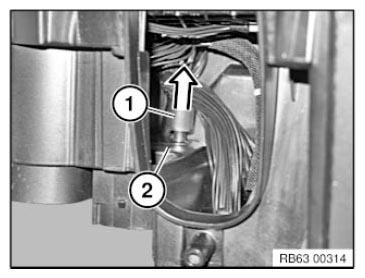

Release cable clip (1) with a suitable tool from the inner light housing (2).

Fig 6: Releasing Cable Clip From Inner Light Housing Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

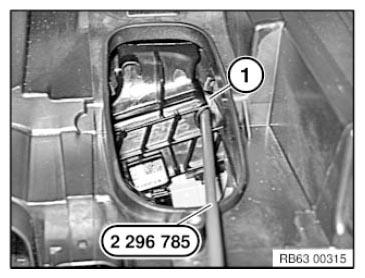

Release screw (1) on LED fan through top opening with special tool 2 296 785.

Tightening torque 63 11 5AZ.

Fig 7: Releasing LED Fan Screw Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

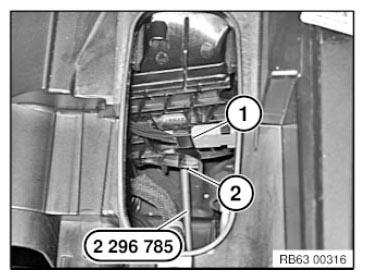

Unlock plug connection (1) and disconnect.

Release screw (2) on LED fan through bottom opening with special tool 2 296 785.

Tightening torque 63 11 5AZ.

Fig 8: Releasing Screw On LED Fan Through Bottom Opening With Special Tool (2 296 785)

Courtesy of BMW OF NORTH AMERICA, INC.

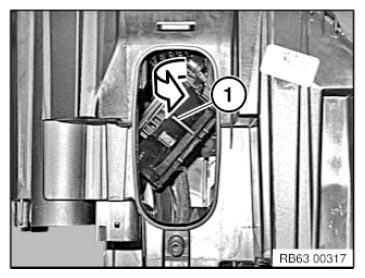

Turn LED fan (1) through 90° and remove through top opening.

Fig 9: Removing LED Fan

Courtesy of BMW OF NORTH AMERICA, INC.

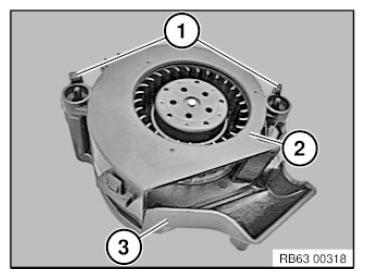

Release catches (1) on LED fan (2) and remove LED fan (2) from air duct (3).

Fig 10: Identifying LED Fan, Catches And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.
