63 11 840 Replacing left LED fan left (outer)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY

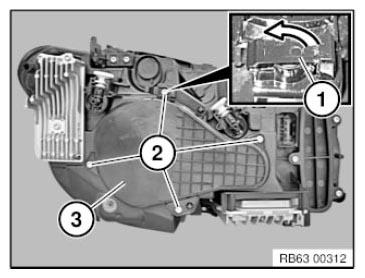

Open screw lock (1).

Release screws (2) and remove protective cap (3).

Tightening torque 63 11 6AZ.

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

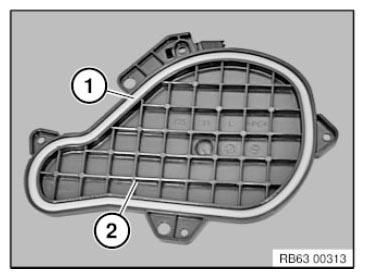

Check seal (1). Replace protective cap (2) if necessary.

IMPORTANT: Risk of damage due to moisture penetration!

Fig 2: Identifying Seal And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

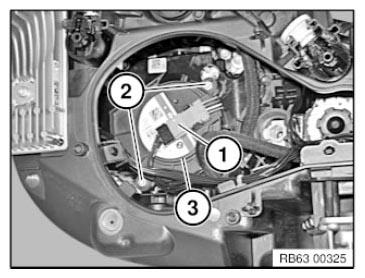

Unlock plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 63 11 5AZ.

Remove LED fan (3).

Fig 3: Identifying LED Fan, Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
