63 11 820 Replacing left cornering light LED module

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE HEADLIGHT

Release screws (1).

Tightening torque 63 11 3AZ.

Remove LED module (2).

Fig 1: Identifying LED Module And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove reflector (2) and disconnect plug connection underneath.

Remove LED module (3).

Installation note:

Seal (4) for LED module (3) must not be damaged and must be installed free from grease.

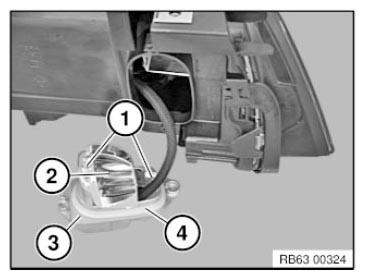

Fig 2: Identifying LED Module, Seal, Screws And Reflector

Courtesy of BMW OF NORTH AMERICA, INC.
