63 11 570 Removing and installing/replacing left headlight driver module (LED headlight)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Attention!

Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove HEADLIGHT WITH LED TECHNOLOGY

Release screws (1) and pull headlight driver module (2) out of headlight.

Tightening torque 63 11 2AZ.

Fig 1: Identifying Headlight Driver Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) must not be damaged and must be installed free from grease.

Guides (2) must not be damaged or missing.

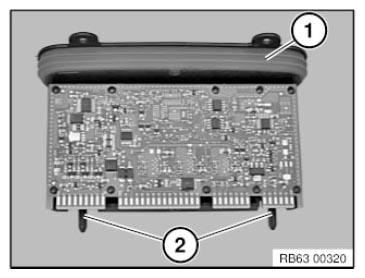

Fig 2: Identifying Gasket And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
