63 17 070 Removing and installing left fog light: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job does not include adjustment of the FOG LAMPS !

Necessary preliminary tasks:

REMOVE trim grille in bumper trim

Release screw (1).

Tightening torque 63 12 7AZ .

Remove fog lamp (2) in direction of arrow.

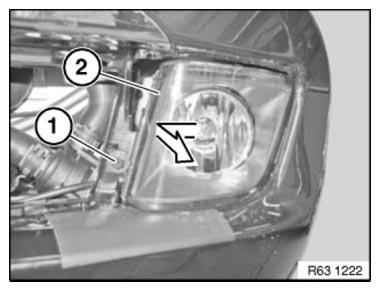

Fig 1: Removing Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)

Disconnect plug connection (1) on fog lamp (2).

Remove fog lamp (2).
