72 11 096 Removing and installing/replacing rear left or right lower belt fitting (MFS)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR SEAT

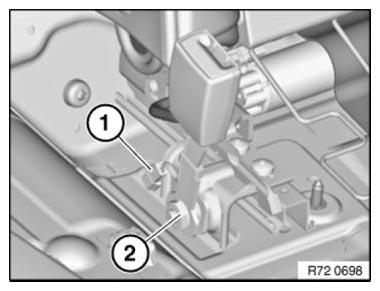

Unfasten plug connection (1) and disconnect.
Release sleeve nut (2).
Tightening torque 72 11 27AZ .
Remove lower belt fitting.
Installation:
Lower strap fitting is coded to prevent incorrect installation.
