Version with screw clips

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

Tightening torque 72 12 02AZ .

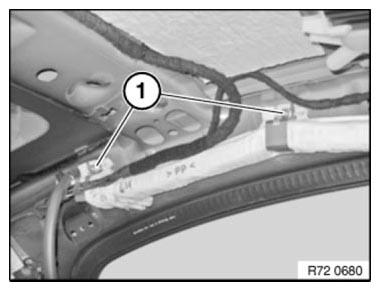

Fig 1: Identifying A-Pillar Screw (Version With Screw Clips)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 72 12 02AZ .

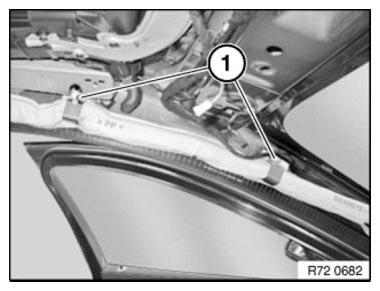

Fig 2: Identifying A-Pillar Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 12 02AZ .

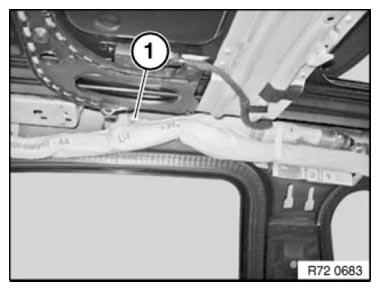

Fig 3: Identifying A-Pillar Wiring Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

UNLOCK AND DISCONNECT plug (1) for gas generator.

Unfasten screws (2).

Tightening torque 72 12 02AZ .

Remove gas generator.

Installation note:

Gas generator is coded against incorrect assembly.

Fig 4: Identifying Gas Generator Plug And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
