72 12 000 Removing and installing or replacing airbag module on front passenger side
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
WARNING:
Read and comply with SAFETY INSTRUCTIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can lead to airbag deployment and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Incorrect handling can lead to airbag deployment and cause injury.
A damaged airbag must be replaced because its protective function is compromised or, in an extreme situation, it can no longer execute its protective function.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD
- Remove GLOVE BOX WITH HOUSING

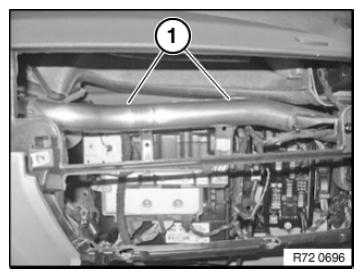

Release screws from holder.
NOTE:
The holder does not have to be removed to access the front screws on the airbag module.

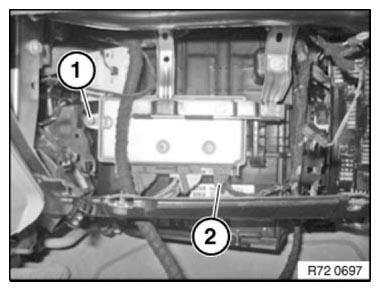

Unfasten plug connection (2) and disconnect.

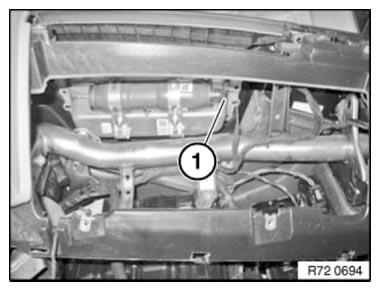

Release screw (1).
Swing control unit out of rubber mount and feed out.
Unlock PLUG CONNECTION (1) and disconnect.
Release all screws on airbag module.
Tightening torque 72 12 01AZ .
Remove airbag module from dashboard.
