66 32 020 Removing and installing/replacing sensor for lane change warning on left or right: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER PANEL

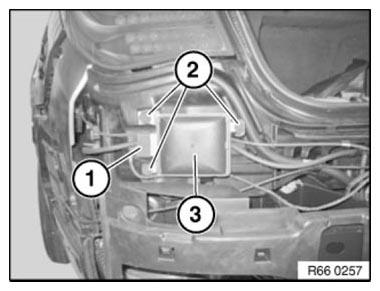

Disconnect plug connection (1).
Unfasten screws (2).
Remove sensor (3).
IMPORTANT:
If, in the event of side damage to the vehicle, it is not necessary to replace the tail panel, observe the following points:
Fit middle bumper panel guide on undamaged side
Use middle bumper panel guide as a gauge in order check or correct the position of the remaining connection points.
Middle bumper panel guide must be able to be fitted tension.
Fit middle bumper panel guide on undamaged side
Use middle bumper panel guide as a gauge in order check or correct the position of the remaining connection points.
Middle bumper panel guide must be able to be fitted tension.
